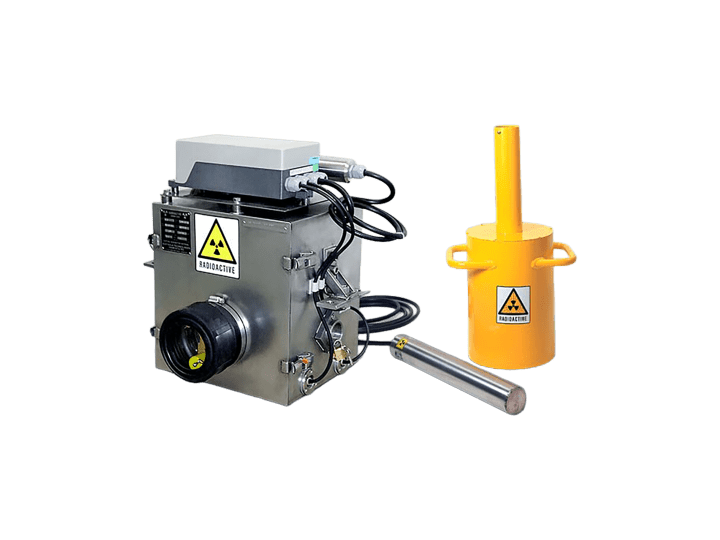

LB 350
Radiometric online moisture analyser for bulk materials
- Accurate real-time determination of moisture content of a wide variety of bulk materials
- Not affected by temperature, conductivity, pressure, pH-value, etc.
- Measures through the vessel wall
- Can be paired with density compensation
Overview
The LB 350 is a measuring system for the real-time determination of moisture content in a wide variety of bulk materials such as coke, sinter mixture, ore, sand, and building materials, and it is used on many different types of vessels. The online moisture analyser is primarily intended for applications that cannot be solved with conventional sensor technologies due to the conductivity or specific chemical properties of the material to be measured.
The LB 350 uses neutron moisture measurement, a very robust and proven technology with a long track record for measuring moisture in bulk and construction materials. It operates reliably even when most other moisture measurement techniques fail. The large measurement volume of up to one meter in diameter ensures a representative reading. Once installed and calibrated, the system provides highly reliable, maintenance-free moisture monitoring of bulk materials for several years. The LB 350 can additionally be equipped with bulk density compensation, which increases the accuracy of the moisture measurement in cases of strongly fluctuating product bulk densities.
Features & Options
Product features and options depend on device configuration: Contact us to make sure that your preferred functionality can be combined in one device.
- Utilises proven neutron moisture measurement technology
- Representative measured values due to large measuring volume
- Can be paired with density compensation
- Attainable accuracy ± 0.1 % depending on application
- Analogue output from sensor (0/4…20 mA); digital input for “hold signal”
- Digital outputs for system status and min. and max. values
- Sensor operating temperature: -20…+50°C
- Density compensation enabled
