LoopSeries LB 430

Radiometric detector for level and density

  • Contactless and non-intrusive density measurement for mining applications
  • Uses silicon multiplier technology for high accuracy, robustness and significantly reduced energy costs
  • 2-wire design for ease of installation: wiring via the 4...20 mA current loop, no additional power wires necessary
  • Optional external display for challenging installation environments

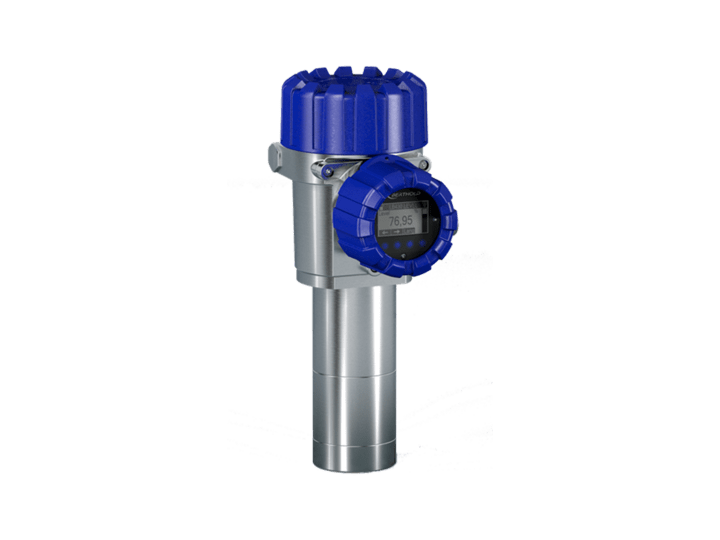

LoopSeries LB 430 radiometric detector for level and density
LoopSeries LB 430

Overview

The LoopSeries LB 430 is a 2-wire radiometric detector that operates solely within a 4...20 mA current loop. Using advanced SiPM (Silicon Photomultiplier) technology, the detector is suited for extreme process conditions, excelling in measurements of density, concentration or switch applications. It is expertly designed to provide reliable and accurate readings under any condition, making it the ideal solution for demanding mining slurry applications with high abrasion and high solids content. Engineered to meet the rigorous requirements of modern industrial environments, the LB 430 detector combines cutting-edge technology, ease of use and advanced functionality.

The Loop series LB 430 can be equipped with an optional external display, offering an efficient way to access process parameters and device status quickly and easily. This added functionality is especially valuable for installations in hard-to-reach locations or remote measurement sites. The external display option enhances the usability of the radiometric detector, providing convenient and reliable access to measurement data even in challenging environments.

Features & Options

Product features and options depend on device configuration: Contact us to make sure that your preferred functionality can be combined in one device.

  • Independent of the physical properties of the material being measured

  • Easy installation on the outside of the pipeline

  • No changes to the piping required

  • No contact with the material being measured

  • Long-term stability without recalibration

  • Latest silicon photomultiplier technology (SiPM): ensures high sensitivity and reliability

  • Market-leading repeatability: <0.1% for superior precision

  • Excellent Temperature Stability: ≤0.5% over a temperature range of 100 K

  • Robust Design: Long service life in demanding conditions

  • High-sensitivity scintillation technology: ensures accurate radiometric measurements

  • Ex-rated for hazardous areas: certified by ATEX, IECEx, etc.

  • Fast response time: delivers quick and reliable measurement results

  • Protection against interference radiation (XIP)

  • 2-wire technology (no additional power supply required)

  • Low power consumption (max. 35 mW)

  • Robust, compact design: withstands high vibrations

  • Housing made of aluminium and 316L stainless steel

  • User-friendly, simple and intuitive operating software

  • Commissioning wizard for easy setup

  • Seamless change and event logging

  • Extensive self-diagnostics

  • Proven XIP interference radiation detection

  • No additional power wires necessary: the 2-wire design simplifies installation by eliminating the need for extra power cables, reducing both material and labour costs

  • Optional external display: removable, can be positioned up to 20 meters from the detector
