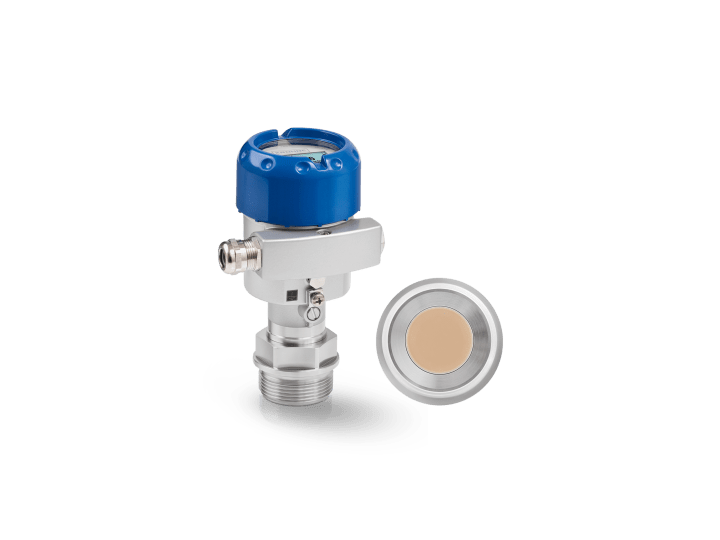

OPTIBAR PC 5060
Pressure transmitter for advanced process pressure and level applications
- Robust design, with corrosion and abrasion resistant ceramic diaphragm
- 25 mbar…100 bar / 0.73…1450 psi; max. +150°C / +302°F
- Various threads, flanges, hygienic and other connections
- 2-wire, 4…20 mA, HART®, FF, Profibus-PA, Bluetooth®
Overview
The OPTIBAR PC 5060 is a pressure transmitter for process pressure and hydrostatic level measurement in all kinds of process applications. It is designed for absolute and gauge pressure measurement in open tanks and – as dual version for electronic differential pressure measurement – also in closed vessels. The pressure device features a ceramic capacitive measuring cell that guarantees maximum overload and vacuum resistance for high plant availability.
Features & Options
Product features and options depend on device configuration: Contact us to make sure that your preferred functionality can be combined in one device.
- Modular design: converter platform for all applications
- Electronic differential pressure measurement
- Highest overload and vacuum resistance
- Wear-free measuring cell for less service and maintenance costs
- Extremely quick step response times <85 ms
- Various housing materials available: plastic, aluminium, stainless steel (precision casting or electro-polished)
- Quick setup for all applications
- Extensive diagnostic and parameterization functions on the display and adjustment module or the user-friendly and free DTMs
- Wireless device commissioning, verification and monitoring with the OPTICHECK Pressure Mobile app
- Ex ia, Ex d, Ex t approvals
- SIL 2/3 certified by TÜV Rheinland
